BAT-Pigtail adapter from RP-SMA connector to N-socket, attenuation 0.5dB at 2.4GHz, 1dB at 5GHz.

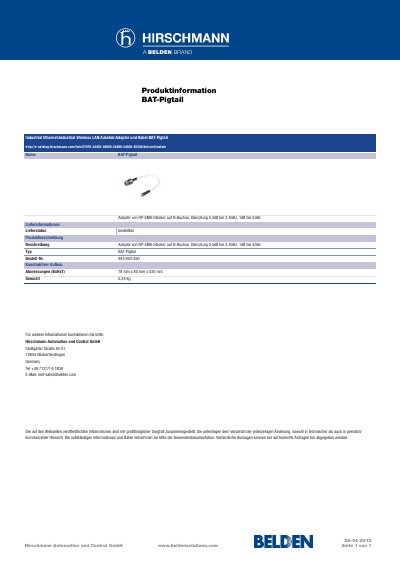

This document provides product information for the Belden BAT-Pigtail (Order No. 943 903-360), an industrial Ethernet and wireless LAN accessory manufactured by Hirschmann Automation and Control GmbH under the Belden brand.
The device functions as an adapter connecting an RP-SMA male connector to an N female connector. It is designed for use in Industrial Ethernet and Wireless LAN applications, featuring a specified signal attenuation of 0.5 dB at 2.4 GHz and 1 dB at 5 GHz. This manual is written in German.
| Connector Type | RP-SMA male to N female |
|---|---|
| Attenuation at 2.4 GHz | 0.5 dB |
| Attenuation at 5 GHz | 1 dB |
| Dimensions (WxHxD) | 78mm x 80mm x 520mm |
| Weight | 0.34 kg |
| Order Number | 943 903-360 |
The BAT-Pigtail is an adapter that connects an RP-SMA male connector to an N female connector.
The adapter has a damping of 0.5 dB at 2.4 GHz and 1 dB at 5 GHz.
The adapter measures 78 mm in width, 80 mm in height, and 520 mm in depth.
