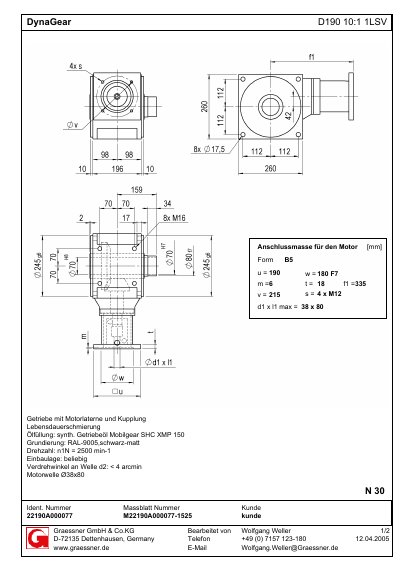

This file is about the product description of DynaGear D190 10:1 1LSV.
This document provides technical specifications for the DynaGear D190 10:1 1LSV gear reducer. It details key operational parameters such as a maximum input speed of 2500 min-1 and an accuracy of less than 4 arcmin at shaft d2.
The datasheet also covers installation requirements, including the use of synthetic Mobilgear SHC XMP 150 oil for long-life lubrication. It provides specific mounting dimensions (Form B5) and coupling data, noting a torsional stiffness of 111 x 10^3 Nm/rad. This manual is written in German.
| Input Speed (n1N) | 2500 min-1 |
|---|---|
| Accuracy at shaft d2 | <4 arcmin |
| Shaft d1 x l1 max | 38 x 80 mm |
| Mounting Form | Form B5 |
The document recommends synthetic Mobilgear SHC XMP 150 oil.
The maximum input speed (n1N) is 2500 min-1.
