The file is about the product introduction of H1AE93TM5NHBE7C2A6O. The product is from VR S3000 series and belongs to 2-way globe valve. The material is AISI 316L. The connection method is internal thread. The sealing method is metal seal. The working temperature range is -30/+180°C.

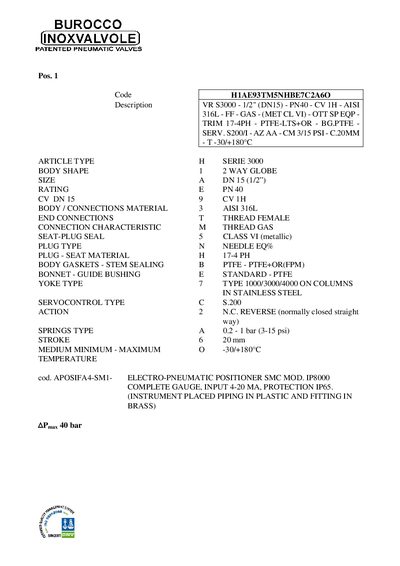

This document provides technical specifications for the Burocco 3000 Series patented pneumatic valves. The specific model detailed is a 2-way globe valve with a DN 15 (1/2") size and a PN 40 pressure rating. The valve body is constructed from AISI 316L stainless steel with female thread gas connections.
| Series | 3000 |
|---|---|
| Valve Type | 2 WAY GLOBE |
| Size | DN 15 (1/2") |
| Body Material | AISI 316L |
| Connection Type | THREAD FEMALE |
| Connection Characteristic | THREAD GAS |
| Seat-Plug Seal | CLASS VI (metallic) |
| Plug-Seat Material | PTFE - PTFE+OR(FPM) |
| Bonnet Guide Bushing | STANDARD - PTFE |
| Yoke Type | TYPE 1000/3000/4000 ON COLUMNS IN STAINLESS STEEL |
| Servocontrol Type | S.200 |
| Action | N.C. REVERSE (normally closed straight way) |
| Spring Type | 0.2 - 1 bar (3-15 psi) |
| Minimum Temperature | -30°C |
| Maximum Temperature | +180°C |
The valve is rated for a temperature range from -30 to +180 degrees Celsius.
The valve requires a minimum air pressure of 3 psi to function.
The maximum air pressure for the positioner is 40 bar.
