This document is a datasheet for the MSDD metal-double frame module. The frame is used for the installation of socket modules or front panel modules. The frame is made of nickel-plated fine zinc pressure cast and has an IP65 protection rating.

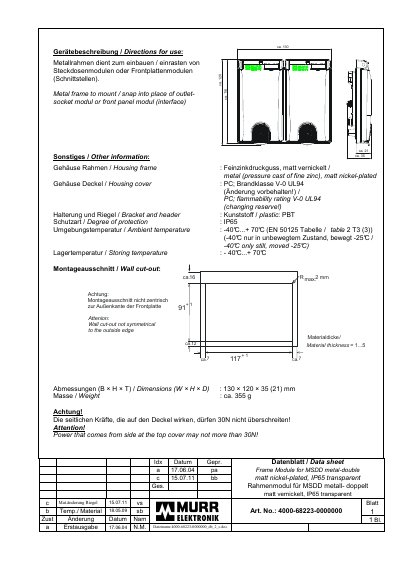

This document is a datasheet for the Murr Elektronik 4000-68223-0000000, a metal frame module intended to mount or snap into place outlet socket modules or front panel interface modules. The housing consists of fine zinc pressure casting with a matt nickel-plated finish and a PC cover rated V-0 UL94 for flammability.
The module features an IP65 degree of protection and is constructed from PBT plastic. It operates within an ambient temperature range of -40°C to +70°C (EN 50125), with movement restricted below -25°C. Physical dimensions are approximately 130 x 120 x 35 mm, weighing about 355g. This manual is written in German.
| Housing material | Fine zinc pressure cast, matt nickel-plated |
|---|---|
| Cover material | PC; Brandklasse V-0 UL94 |
| Ambient temperature range | -40...+ 70T (EN 50125) |
| Wall cut-out dimensions | > 130 x 120 x 35 mm |
| Weight | ca. 355g |
This metal frame is designed to mount or snap into place outlet socket modules or front panel interface modules.
The unit measures approximately 130 x 120 x 35 mm and weighs about 355 grams.
The lateral forces acting on the top cover must not exceed 30 Newtons.
