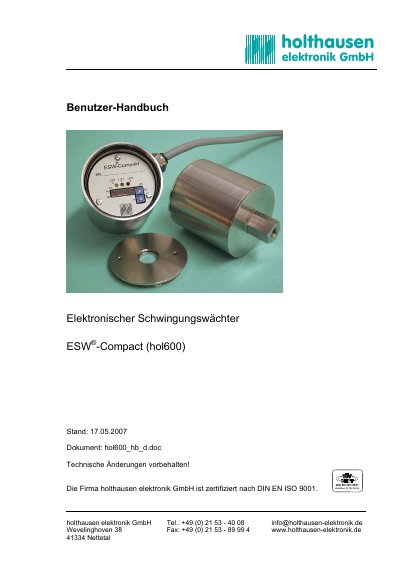

holthausen electronic GmbH's ESW®-Compact (hol600) manual, this manual mainly introduces the product characteristics, including the scope of application, installation methods, use methods, maintenance methods, maintenance methods, etc
The Holthausen Elektronik ESW-Compact (hol600) is an electronic vibration watch designed to monitor machine vibrations and warn when preset limits are exceeded. It operates on the piezoelectric principle, converting mechanical vibrations into electrical signals that correspond to measured vibration velocity.
The device features adjustable measurement ranges via switches and allows for continuous monitoring of analog values through a 4-20mA or 0-20mA output. Users can set two limit values (G1 and G2) using potentiometers, which trigger alarm relays after a configurable delay time if exceeded. This manual is written in German.
| Mounting Screw | M8 x 25 mm |
|---|---|
| O-Ring Size | 62 x 2mm |
Opening the device requires a star key for two-hole nuts of size 4mm.
The device is mounted using a screw pin of size M8 x 25.
The cable must be secured with a radius of approximately 20cm near the cable entry.
