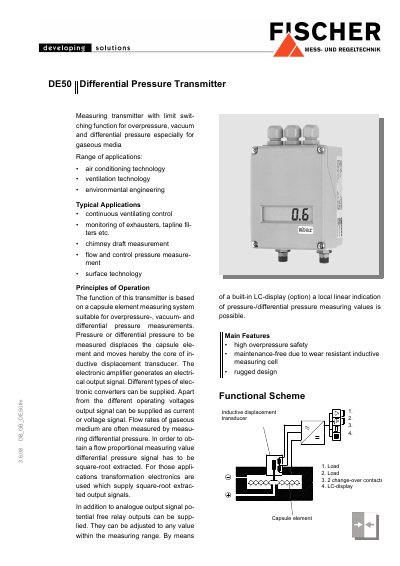

This document is the user manual of GB_DE50 pressure transmitter, which introduces the features, characteristics and usage methods of the product.
The FISCHER DE50 is a measuring transmitter designed for overpressure, vacuum, and differential pressure measurements, specifically for gaseous media. It utilizes a capsule element measuring system suitable for inductive displacement transducers. The device offers various electronic converters and can supply output signals as current or voltage, including square-root extracted signals for flow measurement applications.
| Max. static pressure | max. 3 bar |
|---|---|
| Temperature drift | 0.5% FS/10K |
| Protection class | IP 54 |
| Operating voltages | 230 V AC, 115 V AC, 24 V AC, 24 V DC |
| Power consumption | approx. 3 VA |
| Housing material | diecasted aluminium, varnished |
| Housing cover material | ABS, self-extinguishing |
Typical applications include continuous ventilating control, monitoring of exhausters and tapline filters, chimney draft measurement, and flow and control pressure measurement.
Yes, flow rates of gaseous medium are often measured by measuring differential pressure, and transformation electronics can supply square-root extracted output signals.
The maximum static pressure is up to 3 bar, depending on the specific ordering code.
