The document is an introduction to Cantoni Group's 2SIE series energy efficient motors. It introduces the efficiency of the motors, technical parameters, and dimensional drawings.
The Cantoni 2SIE series consists of general purpose energy-efficient induction motors designed to meet the new IEC 60034-30 efficiency classes, specifically IE2 (High Efficiency). These low-voltage three-phase asynchronous motors are manufactured to comply with international standards including IEC 60034-1 for rating and performance, and IEC 60034-2-1 for efficiency determination.

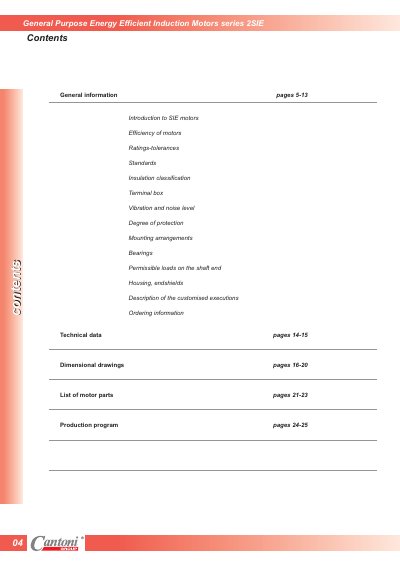

The catalogue details various technical aspects of the motors, including insulation classification (typically Class F), degrees of protection (standard IP 55), mounting arrangements, and permissible loads. It also covers dimensional drawings, a list of motor parts, and ordering information for the production program.
| Rated voltage | up to 1,000 V |
|---|---|
| Rated output | between 0.75 kW and 375 kW |
The present catalogue describes only the electric motors which belong to the efficiency class IE2 (High Efficiency).
The motors cover a power range from 0.75 kW to 375 kW.
A standard vibration level A is maintained in accordance with the IEC 60034-14.
