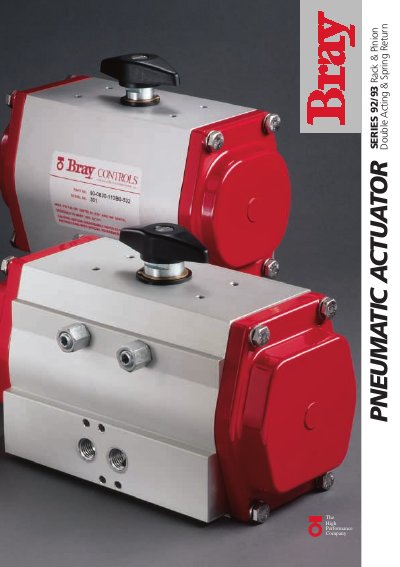

Bray Controls introduces the Series 92/93, a new line of high-performance and high-quality pneumatic actuators. These actuators combine styling, strength, compactness, and simplicity of design. The Series 92/93 actuators are rack and pinion, opposed-piston actuators available in double acting and spring return versions. They are ideal for actuating butterfly, ball, or plug valves that require 90°, 135°, or 180° rotation. The actuators are suitable for pneumatic operation up to a maximum pressure of 10 bar (140 psig) and for temperature ranges of -40°C (-40°F) to +95°C (+200°F).
The Bray Controls Series 92/93 represents a new line of high-performance, highest-quality pneumatic rotary actuators. These rack and pinion, opposed-piston units are designed for compactness and simplicity, featuring modular accessories that mount directly to the actuator for efficiency and reduced cost.
| Maximum Air Supply Pressure | 10 bar (140 psig) |
|---|---|
| Operating Temperature Range | -40°C to +95°C (-40°F to +200°F) |
| Rotation Angles | 90°, 135°, or 180° |
| Mounting Interface | NAMUR interface is standard on all actuator sizes |
They are ideally suited for actuating butterfly, ball or plug valves.
No, they have permanently lubricated factory packed bearings and guides requiring no further lubrication under normal conditions.
