Eurotec EPP Flexible Plastic Limit Switch Box Product Leaflet

This is a PA6/PC/PA6GF30 plastic limit switch box with a transparent flat PC lid, optional 3D or 3D1 display. The product has multiple features, such as an adjustable PA6 mounting bridge, simple standard actuator installation, IP67 sealing, M20x1.5 black cable gland, EPDM and NBR seals, AISI 304 screws and PA6 shaft.

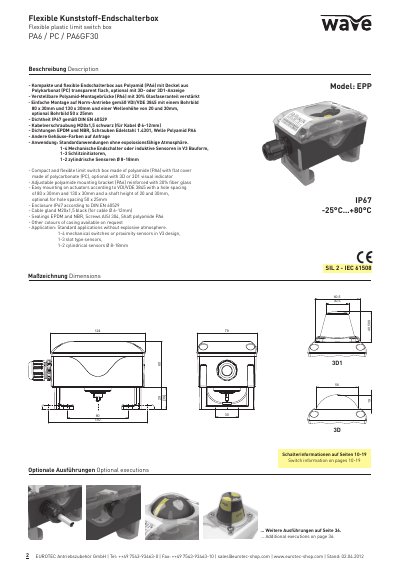

Eurotec EPP Flexible Plastic Limit Switch Box Product Leaflet - cover page
Brand
Eurotec
Category
Industrial Supply
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
289 KB
Published
10 July, 2012
Updated
01 October, 2023
MD5 checksum
A2463062FD749607830B3B4B86F641FD
PDF
Eurotec EPP Flexible Plastic Limit Switch Box Product Leaflet PDF

About this manual

The Eurotec EPP is a compact and flexible limit switch box made of polyamide (PA6) with a flat polycarbonate (PC) cover. It features an adjustable polyamide mounting bracket reinforced with 30% fiberglass, designed for easy mounting on actuators according to VDI/VDE 3845 standards. This manual is written in German.

What's inside

  • Description
  • Mounting
  • Sealing
  • Application
  • Dimensions
  • Switch Information

Specifications

MaterialPA6 / PC / PA6GF30
IP RatingIP67
Cable GlandM20x1,5
Operating Temperature-25°C...+80°C
Shaft Height20 and 30mm
Mounting Hole Spacing80 x 30mm and 130 x 30mm
Sensor Compatibility1-4 mechanical switches or proximity sensors

Frequently asked questions

What is the maximum operating temperature range for this limit switch box?

The device is rated for operation between -25°C and +80°C.

What is the minimum cable diameter supported by the cable gland?

The cable gland supports cables with a diameter of 6mm.

What is the required hole spacing for mounting on standard actuators?

Mounting requires a hole spacing of 80 x 30mm or 130 x 30mm.
