This is the installation guide for DST 1,5 & DST 3 3-phase AC drives, which introduces the product's usage methods, connection methods and precautions.

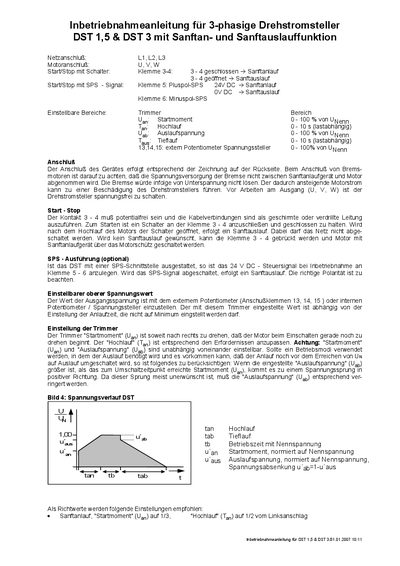

This document is an installation guide (Inbetriebnahmeanleitung) for the Horstmann Antriebstechnik DST 1.5 and DST 3 three-phase soft starters. It details the electrical connections for network and motor terminals, as well as control signals for start/stop functions using either a switch or a PLC (SPS). The guide explains how to configure settings such as starting torque, acceleration time, deceleration voltage, and deceleration time. This manual is written in German.
| Dimensions (WxHxD) | 150x75x134 mm |
|---|---|
| Network Frequency | 50/60 Hz |
| Electronic Power Consumption | 2.8 VA |
| Operating Temperature | -15°C - +40°C |
| Storage Temperature | -25°C - +75°C |
| Relative Humidity | 0% - 90%, non-condensing |
Connect and close a switch at terminals 3-4 to initiate soft start.
Open the switch at terminals 3-4 after the motor has started to initiate soft stop.
Ensure that the brake power supply is not disconnected between the soft starter and the motor to prevent damage.
