This document is the operating instructions for the JV/JVA 10-27 series unbalance vibrator, which includes information about the product's safety, assembly, working principle, and maintenance.

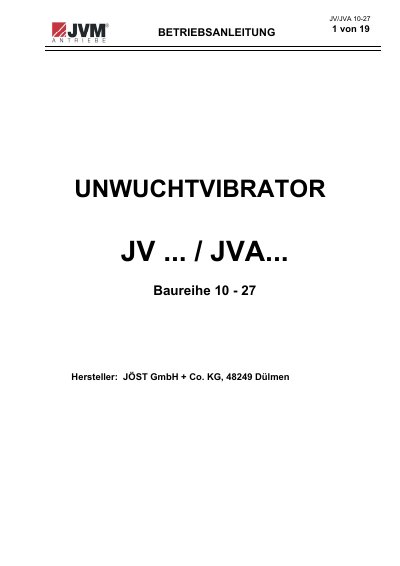

This document is the operating manual for the JVM JVJVA 10-27 series of unbalance vibrators, manufactured by JOST GmbH + Co. KG. The manual provides instructions on safety, general handling, construction, storage, and transportation of the device.
The guide details the assembly and working principle of the three-phase squirrel-cage motor, including the structure of the stator and rotor with adjustable flyweights. It specifies mounting requirements, such as surface preparation and torque values for different models, as well as procedures for electrical connection and setting the centrifugal force. This manual is written in German.
| Mounting Torque (Model 10) | 49 Nm |
|---|---|
| Mounting Torque (Model 13) | 210 Nm |
| Mounting Torque (Model 15) | 410 Nm |
| Mounting Torque (Model 17/20) | 710 Nm |
| Mounting Torque (Model 24/27) | 1450 Nm |
It sets machines with conveying, screening, or tamping functions into mechanical vibrations.
The adjustment can be read via the %-scales attached to the flyweights.
