LTN SC080-14/00-A01 Slip Ring Datasheet

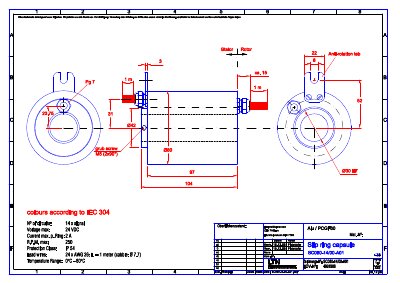

LTN SC080-14/00-A01 Slip Ring Datasheet - cover page
Brand
LTN
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
149 KB
Published
10 July, 2012
Updated
20 July, 2012
MD5 checksum
8EB18D18AC332DC6B8E3D3E1C808C891
PDF
LTN SC080-14/00-A01 Slip Ring Datasheet PDF

About this manual

This document provides technical specifications for the LTN SC080-14/00-A01 slip ring capsule. It lists maximum voltage and current ratings, rotation speed limits, and protection class. The device features 14 signal circuits and is designed for use within a temperature range of 0°C to 80°C.

What's inside

  • Stator
  • Rotor
  • Anti-rotation tab
  • Grub screw
  • Colours
  • Circuits
  • Voltage
  • Current
  • R.P.M.
  • Protection Class

Specifications

Number of circuits14x signal
Maximum voltage24 VDC
Maximum current2A
Maximum R.P.M.250
Protection ClassIP 54
Temperature Range0°C - 80°C
Lead wires24x AWG 26; L = 1 meter
