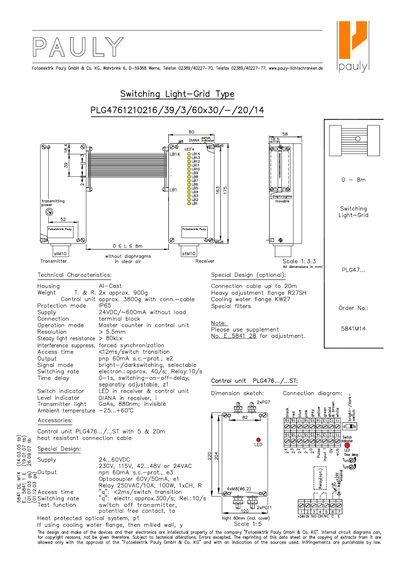

This document provides technical characteristics for the Pauly Switching Light-Grid Type PLG4761210216/39/3/60x30/-/20/14. It lists standard features such as GaAs transmitter lights, IP65 protection mode, and various output options including PNP 60mA and relay configurations.
The datasheet also describes optional special designs available for this model, which include different supply voltages (up to 60VDC or AC), NPN outputs, optocoupler outputs, and enhanced switching rates. It notes that internal circuit diagrams are not provided due to copyright restrictions.
| Transmitter Light Type | GaAs, 880nm; invisible |
|---|---|
| Protection Mode | IP65 |
| Supply Voltage (Standard) | 24VDC/~600mA without load |
| Access Time (Standard) | <12ms/switch transition |
| Switching Rate (Electron.) | approx. 40/s |
| Output (Special Design) | npn 60mA s.c.—prot., e3 |
No, internal circuit diagrams cannot be given for copyright reasons.
The steady light resistance is greater than 80kLx.
