SL20.100/.101 is a 24-28V / 480W (600W) single-phase power supply converter manufactured by SL company in Germany. It has a conversion efficiency of 91% and can be used for parallel connection.

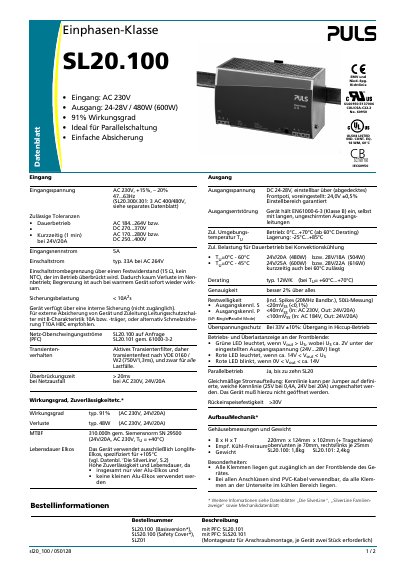

This document is a technical datasheet for the PULS SL20.100 single-phase switching power supply. It specifies an input voltage of AC 230V (47...63Hz) and provides a regulated DC output ranging from 24V to 28V with a maximum power of 600W at 25A. The unit features a typical efficiency of 91% and supports parallel operation for up to ten units. This manual is written in German.
| Input Voltage | AC 230V, +15%, -20% |
|---|---|
| Output Voltage Range | DC 24-28V (adjustable) |
| Rated Output Current | 25A at 24V |
| Efficiency | Typ. 91% |
| Mean Time Between Failures (MTBF) | 310,000h |
| Operating Temperature | 0°C...+70°C (with Derating) |
| Dimensions | 220mm x 124mm x 102mm (+ rail) |
Yes, up to ten units can be connected in parallel with uniform current distribution.
A circuit breaker with B-characteristic rated at 10A or a T10A HBC fuse is recommended.
No, the SL20.100 is a standard version; the model with PFC is designated as SL20.101.
