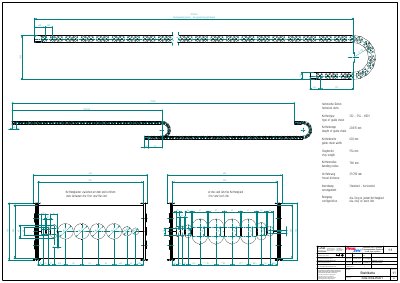

This is a drawing with technical data of a guide chain system.
This document provides technical specifications for the FLEXATEC S32-554-K001 guide chain system. The system is designed for horizontal arrangement and features a self-supporting structure without noticeable friction.
| Type of Guide Chain | S32-554-K001 |
|---|---|
| Length of Guide Chain | 20.035 mm |
| Guide Chain Length | 760 mm |
| Travel Distance | 29.700 mm |
| Arrangement | Horizontal |
