This document is the manual for K 08-10.030 Zeigerwerk mit Mikroschalter Hängewerk 2-fach Typenschlüssel. It introduces the features and characteristics of the product, including type, material, weight, protection level, etc.

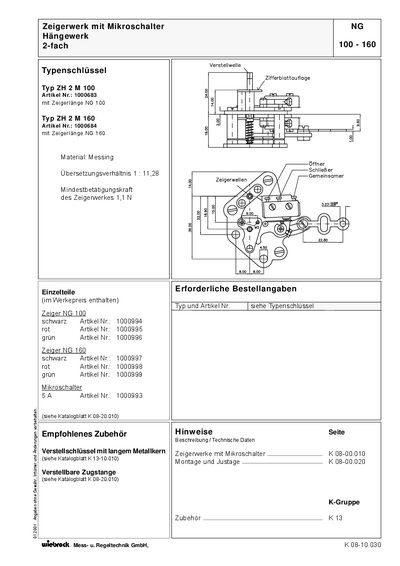

This document provides technical data for Wiebrock pointer mechanisms (Zeigerwerk) with microswitches, specifically models ZH 2 M 100 and ZH 2 M 160. The mechanisms are made of brass and feature a gear ratio of 1:11.28. The minimum operating force required for the pointer mechanism is 1.1 N. This manual is written in German.
| Material | Messing |
|---|---|
| Gear Ratio | 1:11.28 |
| Minimum Operating Force | 1.1 N |
| Model ZH 2 M 100 Article Number | 1000683 |
| Model ZH 2 M 160 Article Number | 1000684 |
The minimum operating force required for the pointer mechanism is 1.1 N.
The pointer mechanism is made of brass (Messing).
