This product is a combination of wave box and mechanical switches, which can be used in a variety of occasions. The product has different types of switches, and different types of switches have different voltage, maximum current, temperature and other specifications. The brand of the product is Cherry, and the model is D44X and D41X.

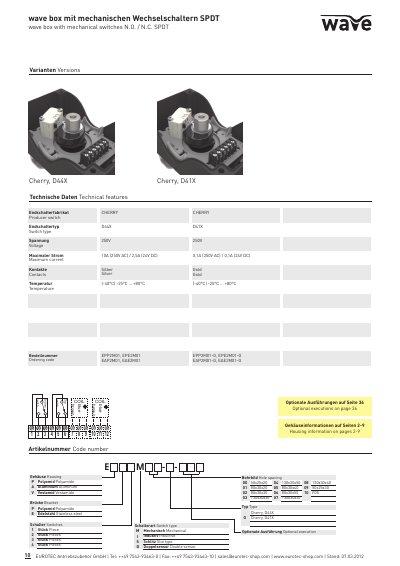

This document provides technical features for Cherry end switches of types D44x and D41X. It details the electrical ratings including a maximum voltage of 250V AC and specific current limits for both AC and DC applications.
The data sheet also covers physical specifications such as housing materials (Polyamide, Aluminum, Vestamid) and bracket options. It lists various ordering codes like EPP2M01 and EPE2MO1, along with hole spacing dimensions for different switch configurations. This manual is written in German.
| Manufacturer | Cherry |
|---|---|
| Switch Types | D44x, D41X |
| Voltage (AC) | 250V AC |
| Max Current (AC) | 10A [250V AC] |
| Max Current (DC) | 2.54A [24V DC] / 0.1A [24V DC] |
| Contact Material | Silver, Gold |
| Operating Temperature | -40°C to +80°C |
| Ordering Code Example | EPP2M01, EPE2MO1 |
The maximum current is 10A at 250V AC or 2.54A at 24V DC.
The switches operate between -40°C and +80°C.
The standard order includes 4 pieces.
