PULS QT20.241/QT20.241-C1 Power Supply Datasheet

This document describes the features and characteristics of the QT20.241 and QT20.241-C1 Q-Series 24V, 20A, three-phase input power supply. The product features wide-range input, high efficiency, small size, 150% peak load capability, active power factor correction, active input transient filter, full power operation between -25°C and +60°C, etc.

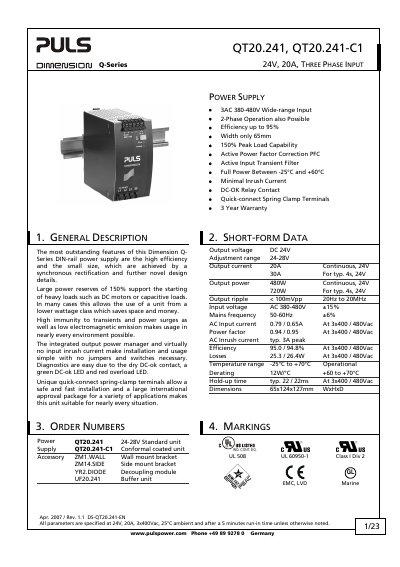

PULS QT20.241/QT20.241-C1 Power Supply Datasheet - cover page
