ML50.100, ML50.109 MiniLine 24V, 2.1A, SINGLE PHASE INPUT is a power supply product produced by onsemi. It supports AC 100-240V wide range input, with a rated power of 50W, a maximum output current of 2.1A, an output voltage of 24V, and support for DC-OK signals. It has an internal DIN-Rail bracket and can be wall-mounted or panel-mounted. It comes with a 3-year warranty.

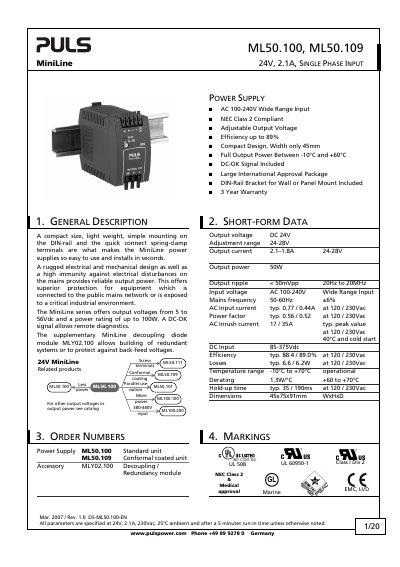

This document is a technical datasheet for the PULS MiniLine series, specifically models ML50.100 (standard unit) and ML50.109 (conformal coated unit). These are compact 24V DC power supplies with a single-phase AC input range of 100-240V.
| Output Voltage (Nominal) | 24V DC |
|---|---|
| Output Current (Max) | 2.1A |
| Input Voltage Range | AC 100-240V |
| Output Power | 50W |
| Dimensions (Width x Height x Depth) | 45x75x91mm |
| Efficiency | up to 89% |
| Operating Temperature Range | -10°C to +60°C |
The output voltage can be adjusted from 24V to 28V.
Yes, the unit includes a DIN-rail bracket for wall or panel mount installation.
