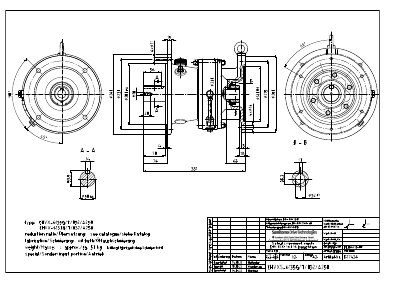

This document is a technology data sheet for the Sumitomo CHVXS-6135G/T/032/A250 model. It provides technical details including surface finish standards (DIN-IS0 1302), general tolerances (DIN-ISO 2768-mH), and lubrication instructions.
The sheet includes specific data for the product, such as a weight of approximately 50 kg without lubricant. It also lists ordering information with an article number of 577438 and approval details dated May 15, 2012. This manual is written in German.
| Surface Finish Standard | DIN-IS0 1302 |
|---|---|
| General Tolerances | DIN-ISO 2768-mH |
| Weight (without lubricant) | Ca. 50 kg |
| Article Number | 577438 |
