This document contains product information of 1220 RCh 40 RChG 40 pressure gauge, including accuracy, connection type, measurement range, measurement unit, material and other information

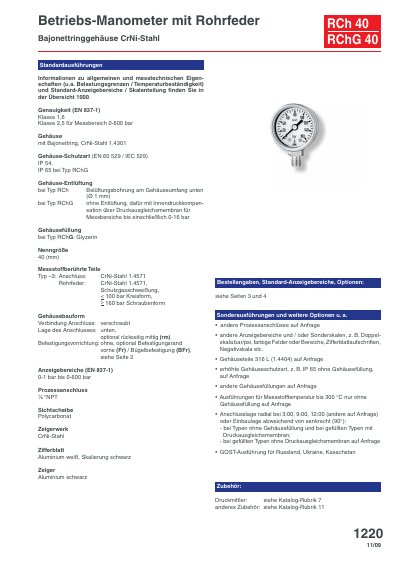

This document provides technical specifications and standard characteristics for the ARMATURENBAU RCh 40 and RChG 40 tube spring manometers. Key features include a CrNi steel casing with a bayonet ring, accuracy class 1.6 (EN 837-1), and protection ratings of IP 54 or IP 65 depending on the type. This manual is written in German.
| Accuracy Class (EN 837-1) | Class 1.6, Class 2.5 for range 0-600 bar |
|---|---|
| Housing Protection Rating | IP 54, IP 65 for Type RChG |
| Housing Material | CrNi steel 1.4301 |
| Nominal Size | 40 mm |
| Process Connection Thread | 1/2" NPT |
The accuracy class is 1.6 according to EN 837-1, or 2.5 for measurement ranges up to 0-600 bar.
The connection and tube spring are made of CrNi steel 1.4571.
