ELMESS DHF22B3/SE-10-T4 Flow Heater Data Sheet

This is a PDF data sheet for a flow heater product, which contains the product name, model, brand, picture, technical parameters, etc.

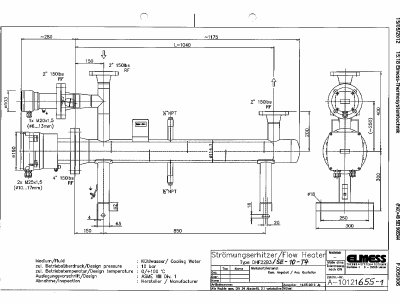

ELMESS DHF22B3/SE-10-T4 Flow Heater Data Sheet - cover page
Brand
ELMESS
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
54 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
6FF2013BC4D1789D0BEE3E9CA760C79D
PDF
ELMESS DHF22B3/SE-10-T4 Flow Heater Data Sheet PDF

About this manual

This document is a technical data sheet for the ELMESS DHF22B3/SE-10-T4 flow heater. It provides key operational parameters including a maximum operating pressure of 10 bar and a design temperature range from -10°C to +100°C.

The unit features a flameproof enclosure (Ex d IIC) suitable for hazardous areas, with dimensions of L=280mm and H=150mm. It is equipped with two M25x1.5 cable glands and includes an electric connection box. This manual is written in German.

What's inside

  • Design pressure
  • Design temperature
  • Flange type
  • Cable glands
  • Enclosure rating
  • Dimensions
  • Heating elements

Specifications

TypeDHF22B3
Flange TypeANSI B16.5 150lbs RF
Cable Glands2x M25x1.5
Enclosure RatingEx d IIC druckfest gekqpseltes Gehduse
Length (L)280 mm

Frequently asked questions

What is the design pressure for this flow heater?

The design pressure is 10 bar.

How many heating elements are included in the heating inset?

The heating inset contains 9 heating elements.

Download PDF (54 KB)
