The TSW 426 series suction filters are used for horizontal tank installation. They can be fitted with various filter media and filter fineness, and can also be fitted with various valves and seals.

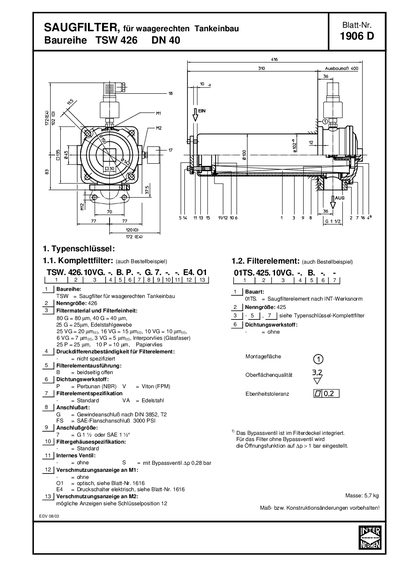

The INTERNORMEN TSW 426 is a suction filter designed for horizontal installation below the oil level in tanks. It connects to the suction line and features a filter element made of star-folded filter material wrapped around a perforated support tube. The filter is suitable for all mineral oils, emulsions, and most synthetic hydraulic fluids and lubricants. It operates within a temperature range of -10 °C to +80 °C (short-term up to +100 °C). This manual is written in German.
| Temperature range | -10 °C to +80 °C (short-term +100 °C) |
|---|---|
| Operating medium | Mineral oil, other media on request |
| Housing material | Al-GuB; Polyamid glasfaserverstarkt |
| Sealing material | Perbunan (NBR) or Viton (FPM) |
| Installation position | Horizontal |
| Tank volume | 2.61 |
The filter is designed for horizontal installation below the oil level in the tank.
Disposable elements with filter materials made of paper or Interporvlies (glass fiber) should be used.
