E2.x.P is the model number of Stoll's pneumatic pressure switch. It is a double-throw switch that can switch circuits at the set pressure point.

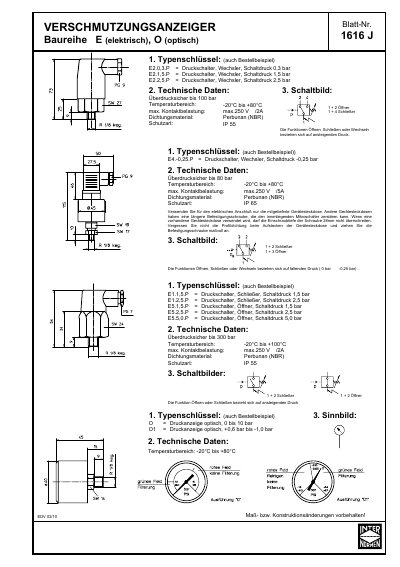

This document provides technical specifications for the INTERNORMEN 1616 J series of clogging indicators (Verschmutzungsanzeiger). The product line includes two main types: 'E' for electrical switching and 'O' for optical indication. These devices are designed to monitor pressure levels in fluid systems. This manual is written in German.
| Max. Overpressure rating (Series E) | 100 bar |
|---|---|
| Max. Overpressure rating (Series O) | 80 bar |
| Max. Overpressure rating (Series E1) | 300 bar |
| Temperature range (Series E & O) | -20°C to +80°C |
| Max. Contact load (Switching) | max. 250 V=/2A |
| Sealing material | Perbunan (NBR) |
The maximum overpressure rating is 300 bar.
The unit operates between -20°C and +100°C.
The maximum contact load is 250 V=/2A.
