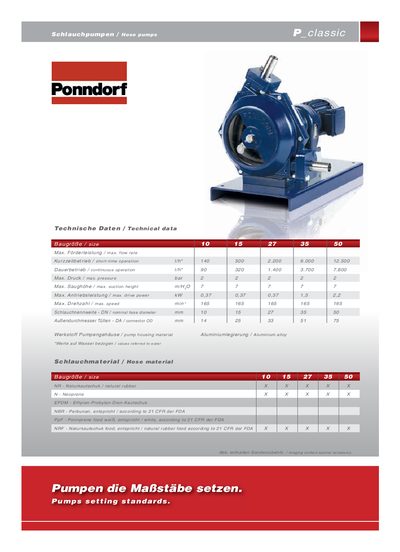

Ponndorf P_classic hose pumps technical data sheet, including model, maximum flow rate, maximum pressure, maximum suction height, maximum drive power, maximum speed, nominal hose diameter, connector OD, pump housing material, hose material, etc.
This document provides technical specifications for the Ponndorf P_classic series of hose pumps. It details performance characteristics such as maximum flow rate under short-time and continuous operation, maximum suction height, and drive power for sizes ranging from 10 to 50.
The text also lists available accessories like special drives, mechanical or electronic speed controls, and various connection types. Dimensional drawings and characteristic curves illustrating the relationship between flow and counter-pressure are included.
| Sizes available | 10, 15, 27, 35, 50 |
|---|---|
| Max. suction height | 7 m H2O |
| Max. pressure | 2 bar |
| Hose materials available | Natural rubber, Neoprene, EPDM, NBR, Ponnprene food, Natural rubber food |
Yes, they are described as safe to run dry.
The pump can self-prime up to a maximum suction height of 7 meters of water column.
Yes, the pump is designed to be safe to run dry without damage.
The maximum pressure rating is 2 bar for all available sizes.
