ATM60-A4A12X12 absolute encoder is an extremely robust, tried-and-tested absolute multiturn encoder with a resolution of up to 26 bits

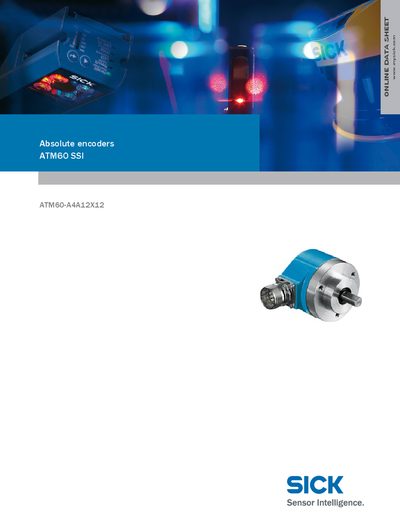

This document is a technical datasheet for the SICK ATM60-A4A12X12 absolute encoder. It describes an extremely robust, tried-and-tested multiturn encoder with a resolution of up to 26 bits. The device features magnetic scanning, requires no battery, and supports various mechanical interfaces including face mount flange and blind hollow shaft.
| Max. number of steps per revolution | 4,096 |
|---|---|
| Max. number of revolutions | 4,096 |
| Resolution power | 4,096 x 4,096 |
| Error limits | <=0.25 ° |
| Repeat accuracy | 01° |
| Measuring step | 0.043 ° |
| Initialization time | 1,050 ms |
No, it is maintenance-free and requires no battery.
The maximum number of steps per revolution is 4,096.
The operating voltage range is 10V to 32V.
