Vertically mounted, for base mounting, can transport various media (such as methanol), the outlet pressure is approximately 2 bar, the speed is 1450 rpm, the power requirement is 0.3 kW, the flow rate is 0.8 m3/h, and the delivery height is 27.4 m

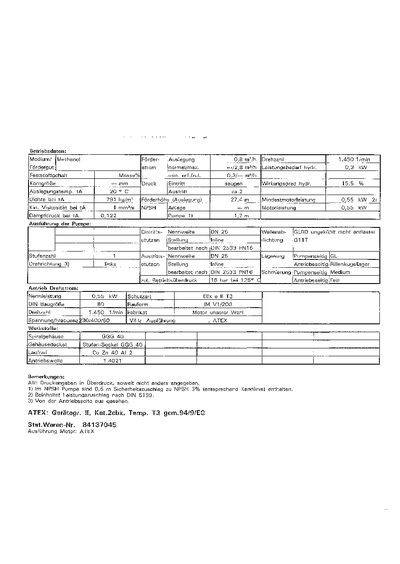

This document provides technical data for the Allweiler SVG 111 centrifugal pump. It specifies design parameters such as a flow rate of 0.8 m³/h, a head of 27.4 meters, and a required motor power of 0.55 kW. The pump is designed to handle methanol at an operating temperature of 20°C. This manual is written in German.
| Flow Rate (Design) | 0.8 m3/h |
|---|---|
| Head (Design) | 27.4 m |
| Motor Power | 0.55 kW |
| Efficiency (Hydraulic) | 15.5 % |
| Casing Material | GGG 40 |
| Impeller Material | Cu Zn 40 Al 2 |
The minimum motor power required is 0.55 kW.
The maximum flow rate is 2.8 m3/h.
