Buschjost 82400/82410 Series Solenoid Valve Data Sheet

This document is about the 82400 82410 model of magnetic valve. The product features include high flow, sealing explosion-proof, simple and compact structure, and tool-free removable magnet (click-on).

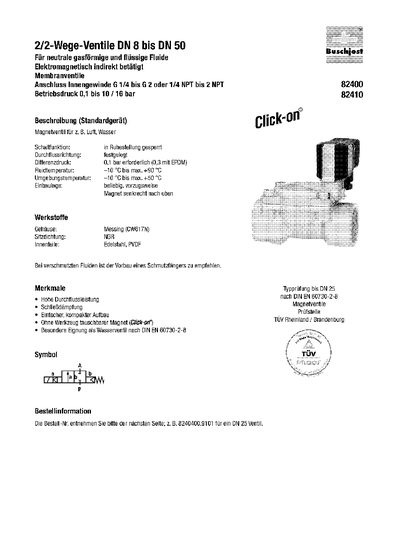

Buschjost 82400/82410 Series Solenoid Valve Data Sheet - cover page
Brand
Buschjost
Document type
Product Leaflet
Language
German
Pages
4
File format
PDF
File size
112 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
EA0235C81CD44E82ECC0D3D6D9CA8441
PDF
Buschjost 82400/82410 Series Solenoid Valve Data Sheet PDF

About this manual

This document provides technical specifications for the Buschjost 82400 and 82410 series of 2/2-way solenoid valves. These valves are designed for neutral gaseous and liquid fluids with a nominal size range from DN 8 to DN 50. This manual is written in German.

What's inside

  • Beschreibung
  • Merkmale
  • Werkstoffe
  • KenngroBen
  • Magnetinhalte
  • Weitere AusfUhrungen
  • Schnittzeichnung
  • MaBzeichnung

Specifications

Nominal size rangeDN 8 bis DN 50
Connection threadG1/4 bis 2 or 1/4 NPT bis 2 NPT
Operating pressure0.1 to 10 / 16 bar
Fluid temperature range-10 C to max.+90 C
Ambient temperature range-10 C to max.+50 C
Housing materialBrass (CW617N)
Protection classIP65

Frequently asked questions

What is the minimum differential pressure required?

A differential pressure of 0.1 bar is required, or 0.3 bar with EPDM.

Is the magnet replaceable without tools?

Yes, the document states it is a tool-free exchangeable magnet.
