This datasheet provides information about the ACM 200 LB-2 / HE IM B3 / IM 1001 High Efficiency motor, including its power, speed, voltage, current, torque, frequency, and insulation.

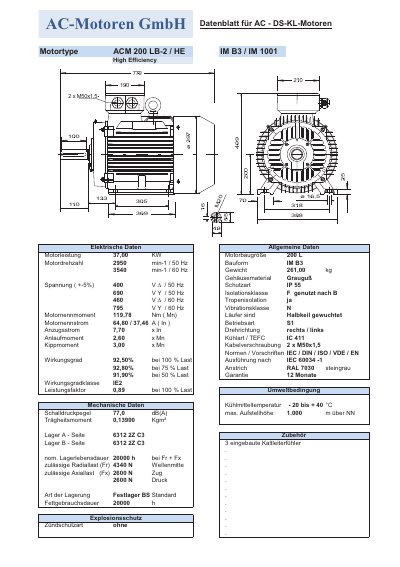

This document is a datasheet for the AC-Motoren ACM 200 LB-2 / HE AC motor. It provides detailed technical data including electrical ratings, mechanical dimensions, and efficiency class.
The motor features a 37.00 kW power rating and an efficiency class of IE2. It is designed for continuous operation (S1) with a protection rating of IP 55 and an insulation class of F. This manual is written in German.
| Power | 37.00 KW |
|---|---|
| Speed (50 Hz) | 2950 min-1 |
| Speed (60 Hz) | 3540 min-1 |
| Weight | 261.00 kg |
| Efficiency Class | IE2 |
| Protection Rating | IP 55 |
| Insulation Class | F |
| Efficiency (100% load) | 92.50% |
The motor has a rated power of 37.00 KW.
The maximum allowable radial load is 4340 N at the shaft center.
