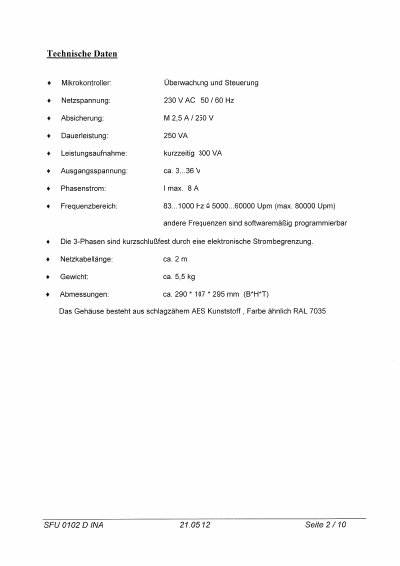

This document provides technical specifications for the Mikrokontroiler SFU 0102. Key electrical parameters include a network voltage of 230 VAC at 50/60 Hz, a fuse rating of M2,5A/250 V, and a continuous power output of 250 VA. The device supports a frequency range of 83...1000 Hz and a maximum speed of 80,000 Upm. This manual is written in German.
| Network Voltage | 230 VAC 50/60 Hz |
|---|---|
| Fuse Rating | M2,5A/ 250 V |
| Peak Power | 300 VA |
| Output Voltage | 3...36 V |
| Max Phase Current | 8A |
| Frequency Range | 83...1000 Hz |
| Max Speed | 80000 Upm |
| Weight | 5.5 kg |
| Dimensions | 290 * 107 * 295 mm |
The device weighs approximately 5.5 kg and measures approximately 290 * 107 * 295 mm (W*H*D).
