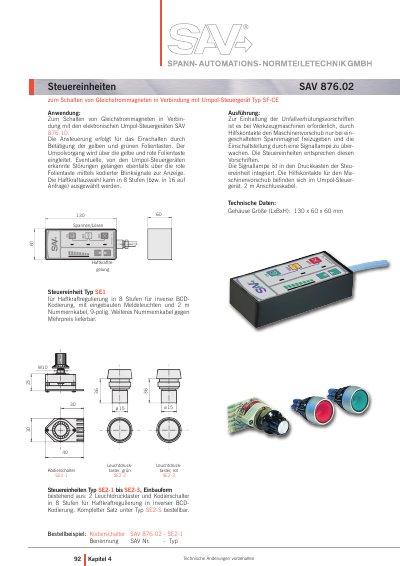

This document describes the application of SAV 876.02 control units and Umpol control unit type SF-CE. They are used to switch DC magnets in conjunction with the SAV 876.10 electronic reversing controller. The control is done through yellow and green foil buttons for switching on and yellow and red foil buttons for reversing. The selected holding force can be adjusted in 8 levels. Any detected malfunctions are indicated through the red foil button with coded blinking signals. The document also mentions the use of auxiliary contacts and signal lamps to comply with safety regulations.
The SAV 876.02 is a control unit designed for switching DC magnets in conjunction with the electronic polarity reversal device TYyP SF-CE. It is also applicable for use with the SAV 876.10 electronic polarity reversal devices. Operation involves yellow and green membrane buttons for switching and a yellow/red membrane button for the polarity reversal process. Disturbances recognized by the polarity reversal devices are displayed via coded blinking signals on the red membrane button. The holding force can be selected in 8 stages (or 16 upon request). This manual is written in German.
| Housing Dimensions | 130x60x60 mm |
|---|---|
| Holding Force Selection | 8 stages (or 16 upon request) |
It is used to switch direct current magnets in connection with a polarity reversal control device.
The housing size is 130x60x60 mm.
