This document describes the 2/2-way valves ON 8 to ON 25, which are electromagnetic diaphragm valves with DVGW approval, suitable for neutral gas and liquid fuels. They have internal threaded connections G1/4 to G1 and operate at pressures of 0 to 4/8 bar. The valves offer high functionality and short response time.

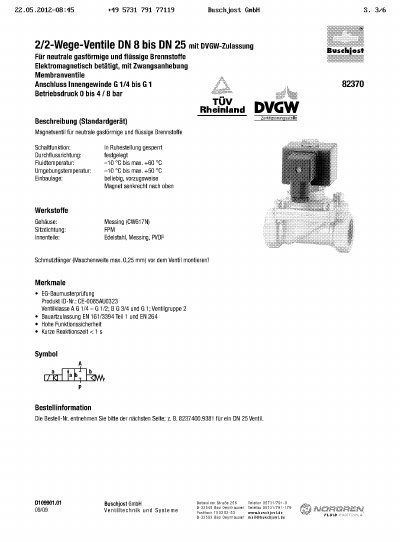

This document provides technical information for the Buschjost 82370 series of electromagnetic 2/2-way solenoid valves. These valves are designed for neutral gaseous and liquid fuels and feature forced lifting operation with a membrane valve design. The product range covers nominal sizes from DN 8 to DN 50. This manual is written in German.
| Nominal Size Range | DN 8 to DN 50 |
|---|---|
| Connection Size Range | G 1/4 to G 1 |
| Operating Pressure (Max) | 0 to 8 bar |
| Fluid Temperature Range | -10 °C to max. +60 °C |
| Ambient Temperature Range | -10 °C to max. 50 °C |
| Housing Material | Brass (CW617N) |
| Seat Seal Material | FPM |
The valve has a short reaction time of less than 1 second.
No, the installation position is arbitrary, though vertical with magnet up is preferred.
A dirt trap with a maximum mesh width of 0.25 mm should be mounted before the valve.
