The VHZ-.GA/GK is a gear flow meter produced by the German Volutron company. It is suitable for measuring viscous, liquid, self-lubricating media.

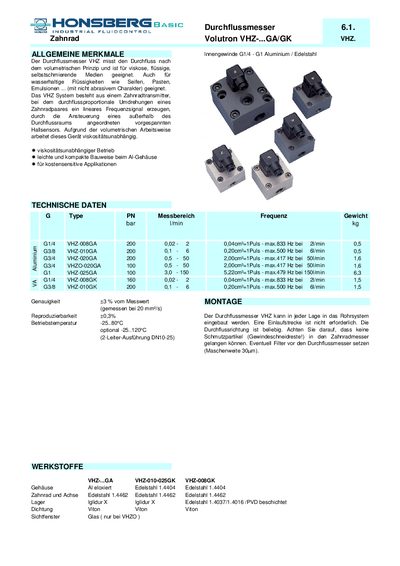

This document provides technical data for the Honsberg VHZ series of flowmeters, which operate on a volumetric principle using a gear transmitter. The device is suitable for viscous, self-lubricating, and water-based fluids with non-abrasive characteristics. It features a compact design and operates independently of viscosity. This manual is written in German.
| Operating Principle | volumetrischen Prinzip |
|---|---|
| Accuracy | +3 % vom Messwert |
| Reproducibility | +0,3% |
| Operating Temperature | -25..80°C |
| Supply Voltage (VHZ-008) | 4,5..24 VDC |
| Supply Voltage (VHZ-010 to 025) | 10..30 V DC |
| Protection Class | IP 65 |
It is suitable for viscous, self-lubricating media and water-based fluids like soaps and emulsions, provided they are non-abrasive.
No, an inlet pipe length is not required for the VHZ flowmeter.
