This document introduces the 90 series sockets and accessories, including various types of sockets such as box clamp sockets, plate clamp sockets, PCB sockets, etc., as well as their usage instructions.

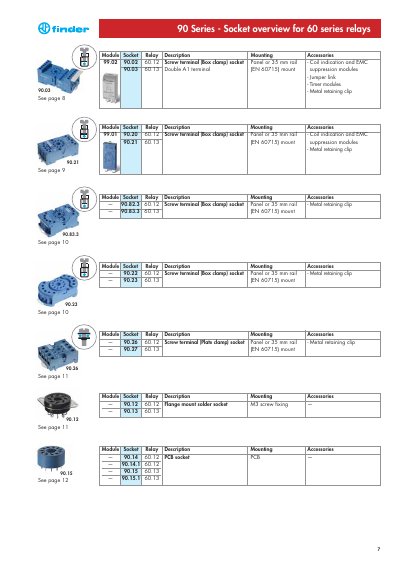

This document provides an overview of the FINDER 90 Series socket modules designed for use with 60 Series relays. It details various socket types, such as screw terminal (box clamp) and flange mount solder sockets, along with their specific mounting accessories like metal retaining clips and jumper links. The text also lists compatible relay types, including 60.12 and 60.13.
| Rated values | 10 A-250 V |
|---|---|
| Dielectric strength | 2kVAC |
| Protection category | IP 20 |
| Ambient temperature | -40...+70 °C |
| Screw torque | 0.6 Nm |
| Wire strip length | 10 mm |
The sockets are compatible with relay types 60.12 and 60.13.
The rated values are 10 A-250 V.
The specified screw torque is 0.6 Nm.
