Stuewe HSD 12-22 HSD 80-22 HSD 360-22 Equal technology data

About this manual

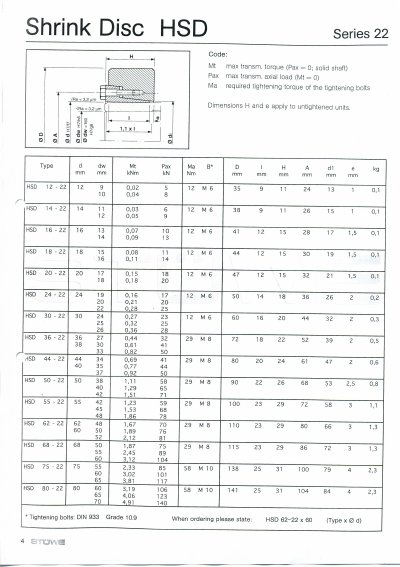

This document provides technical specifications for the Stuewe HSD Series 22 shrink discs. It details the maximum transmissible torque and axial load for each model size.

The datasheet includes a comprehensive table listing specific dimensions and tightening torque requirements for bolts ranging from M6 to M24.

What's inside

• Shrink Disc HSD Series 22
• Maximum Transmissible Torque
• Maximum Axial Load
• Required Tightening Torque
• Dimensions
• Tightening Bolts

Specifications

Frequently asked questions

What is the maximum transmitted torque for the HSD 22 series shrink disc?

The maximum transmitted torque depends on the specific model size, ranging from 0.02 kNm for the HSD 12-22 up to 496 kNm for the HSD 360-22.

What tightening bolts are required for the HSD 22 series shrink discs?

The required tightening bolts are DIN 933 Grade 10.9.

What dimensions apply to the shrink disc units?

Dimensions H and e apply to untightened units.
