This is the specification of COMBIMASS® gas flow measurement product with model COMBIMASS eco

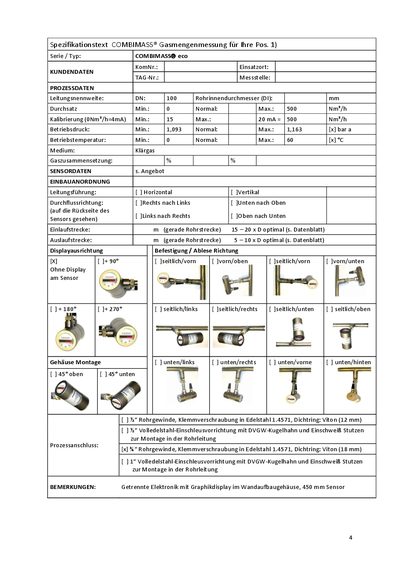

This document serves as a configuration template or specification sheet for the Binder COMBIMASS eco series of gas volume flow meters. It provides specific technical data points required to define the device settings based on different pipe sizes and application scenarios.
The text covers three distinct configurations corresponding to nominal pipe diameters (DN) of 100, 250, and 500 mm. For each configuration, it lists process parameters such as minimum and maximum throughput, operating pressure ranges, and temperature limits. It also details installation instructions regarding flow direction, straight pipe run requirements for inlet and outlet, and options for display mounting or separate electronics. This manual is written in German.
| Product Series | COMBIMASS eco |
|---|---|
| Medium Type | Klargas |
| Inlet Straight Pipe Run (Optimal) | 15 — 20 x D |
| Outlet Straight Pipe Run (Optimal) | 5-10 x D |
The document specifies an optimal straight pipe run of 15 to 20 times the diameter (D) for the inlet.
The maximum operating temperature is 60 °C.
The maximum throughput is 2000 Nm3/h.
