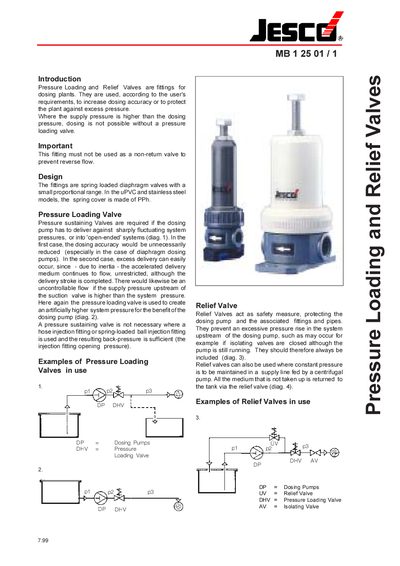

JESCO MB 1 25 01 Pressure Loading and Relief Valves Data Sheet - cover page
Brand
Jesco
Category
Industrial Supply
Document type
Product Leaflet
Language
English
Pages
5
File format
PDF
File size
151 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
E4F28207BF7B5718A10858F2A3808B70
PDF
JESCO MB 1 25 01 Pressure Loading and Relief Valves Data Sheet PDF

About this manual

This document provides technical specifications and selection data for JESCO pressure loading and relief valves. These fittings are designed for use in dosing plants to increase dosing accuracy or protect the plant against excess pressure. The valves are available in uPVC, PVDF, PTFE, and stainless steel (1.4571) models.

What's inside

  • Introduction
  • Design
  • Pressure Loading Valve
  • Relief Valve
  • Selection Criteria
  • Flow Rating
  • Dimensions
  • Valve Selection Table
  • Connection Selection
  • Stainless Steel Construction

Specifications

ApplicationDosing plants
Valve TypeSpring loaded diaphragm valves
Max Pressure (uPVC/PVDF)10 bar
Max Temperature (Stainless Steel)50 °C
Max Temperature (DN 6 Stainless Steel)120 °C
Opening Pressure Range (DN 6)0.5 to 200 bar
Opening Pressure Range (DN 10)16 to 300 bar

Frequently asked questions

What are the selection criteria for these valves?

The selection criteria include flow rating, pressure, permissible pressure drop, medium nature, temperature, and connection type.

Can the valves be installed in any direction?

Yes, the stainless steel valves can be installed in any direction.

What material is the valve seat made of for DN 6?

The valve seat material for DN 6 is Viton.
