PCS series pressure switches are electronic pressure switches from the Patron brand. They have an IP65 (NEMA 4) protection rating and come with a fixed differential micro SPDT or DPDT switch. The product is made of aluminum alloy and features a gray epoxy coating. It can be adjusted in the range of 0 to 100 bar.

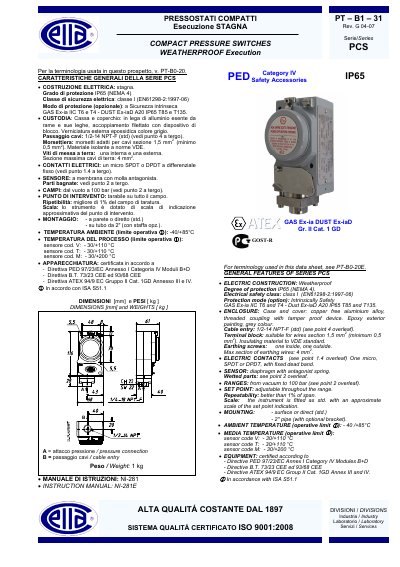

This document provides technical specifications for the Cella PCS series of compact pressure switches. The devices feature a weatherproof (IP65) enclosure made of copper-free aluminum and are designed for industrial applications ranging from vacuum to 100 bar. They utilize a diaphragm sensor with an antagonist spring and offer adjustable set points with high repeatability.
| Degree of protection | IP65 (NEMA 4) |
|---|---|
| Electrical safety class | Class I |
| Max pressure range | Vacuum to 100 bar |
| Repeatability | Better than 1% of span |
| Weight | 1 kg |
| Ambient temperature limit | -40/+85°C |
| Sensor code V temperature limit | -30/+110°C |
| Sensor code T temperature limit | -30/+110°C |
| Sensor code M temperature limit | -30/+200°C |
The standard cable entry thread is 1/2-14 NPT-F.
Standard delivery is within one week.
