AVP 242.244 is a pneumatic actuator developed by Siemens. It has the advantages of energy saving and low power consumption. It is suitable for the control of various valves.

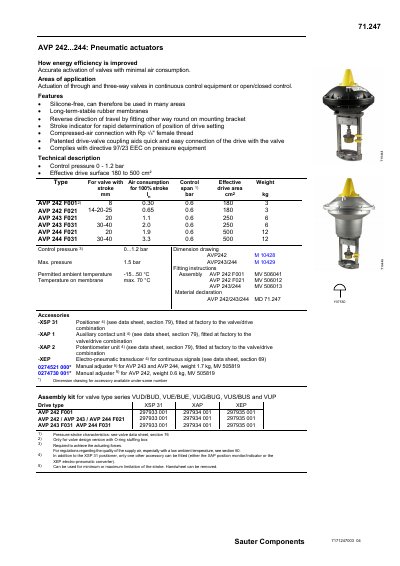

This document provides technical data for the Sauter AVP 242, AVP 243, and AVP 244 pneumatic actuators. These devices are designed for the accurate activation of through and three-way valves with minimal air consumption. Key features include silicone-free rubber membranes, a patented drive-valve coupling, and the ability to reverse the direction of travel by fitting the unit differently on the mounting bracket.
| Control pressure | 0 - 1.2 bar |
|---|---|
| Effective drive surface | 180 to 500 cm² |
| Max. pressure | 1.5 bar |
| Permitted ambient temperature | -15...50 °C |
| Temperature on membrane | max. 70°C |
| Compliance | Directive 97/23 EEC |
The effective drive surface ranges from 180 to 500 cm².
Yes, the direction of travel can be reversed by fitting the unit other way round on the mounting bracket.
The maximum temperature on the membrane is 70°C.
