Sommer-Technik ZF/TO/MH Series Pneumatic Lubricators and Dripers Product Data Sheet

This is a manual for Sommer-Technik AS magnetic oil cups, which introduces the features, use and installation methods of AS oil cups.

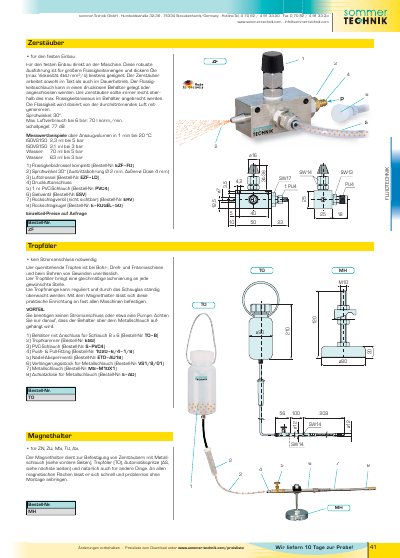

Sommer-Technik ZF/TO/MH Series Pneumatic Lubricators and Dripers Product Data Sheet - cover page
Brand
Sommer-Technik
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
127 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
43F5B2AB19FA397362A51A63C560E63C
PDF
Sommer-Technik ZF/TO/MH Series Pneumatic Lubricators and Dripers Product Data Sheet PDF

About this manual

This document provides technical specifications and ordering information for the Sommer-Technik ZF series pneumatic atomizers. These devices are designed for direct installation on machines to dispense fluids, including oils with a maximum viscosity of 480 mm²/s, in both intermittent and continuous operation modes.

The text also details the TO series dripers, which provide uniform lubrication without requiring an electrical connection or pump. Additionally, it describes the MH magnetic holder used for mounting these devices on ferrous surfaces. This manual is written in German.

What's inside

  • Zerstauber (Atomizer)
  • Tropfaler (Driper)
  • Magnethalter (Magnetic Holder)
  • Technical Specifications
  • Ordering Information
  • Installation Instructions

Specifications

Operation ModeIntermittent and Continuous

Frequently asked questions

Does the TO driper require an electrical connection?

No, it does not require a power supply or a pump.

What is the maximum oil viscosity rating for the ZF atomizer?

The device is suitable for oils with a maximum viscosity of 480 mm²/s.

How much water does the ISJVG150 model consume at 5 bar?

The unit consumes 70 ml of water per minute when operating at 5 bar.

Does the TO dripper require an electrical connection to operate?

No, this model does not need a power supply or pump; it hangs over a metal hose.

Download PDF (127 KB)
