Contelec WAL 600 Technology Data Sheet

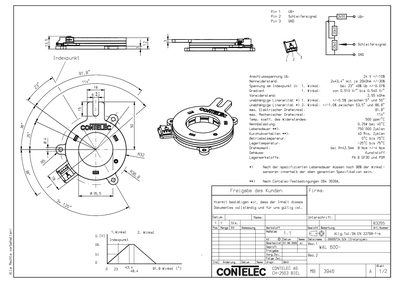

Contelec WAL 600 Technology Data Sheet - cover page
Brand
Contelec
Category
Other Electronics
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
118 KB
Published
10 July, 2012
Updated
23 July, 2012
MD5 checksum
C33C63AC5988E4B06397A4586A33EA13
PDF
Contelec WAL 600 Technology Data Sheet PDF

About this manual

This document provides technical specifications for the Contelec WAL 600 angle sensor. It details the electrical characteristics, including supply voltage and resistance values, as well as mechanical properties such as maximum electrical and mechanical rotation angles. The sensor operates within a temperature range of 0°C to 75°C. This manual is written in German.

What's inside

  • Electrical Characteristics
  • Mechanical Limits
  • Temperature Coefficients
  • Operating Conditions
  • Storage Conditions
  • Torque Specifications
  • Housing Material
  • Bearing Material
  • Endurance
  • Cyclic Life

Specifications

Nomininal Resistance2.55 kOhm
Temperature Coefficient500 ppm/°C
Max. Mechanical Rotation Angle40 Mio. Zyklen
Operating Temperature0°C bis 75°C
Storage Temperature-25°C bis 75°C
Housing MaterialPlastic
Bearing MaterialPA 5 5F30 and POM

Frequently asked questions

What is the nominal resistance of the WAL 600?

The nominal resistance is 2.55 kOhm.

What is the maximum operating temperature?

The maximum operating temperature is 75°C.

What material is used for the housing?

The housing is made of plastic (Kunststoff).

Download PDF (118 KB)
