This is an introduction to the 105 Vario-Serie series of products. The series are rectangular edge signal generators that can be used for DC or DC voltage. They have 2 edge contacts, a rotary measuring instrument, a profile scale, a narrow frame according to DIN 43 718 and are painted black matt.

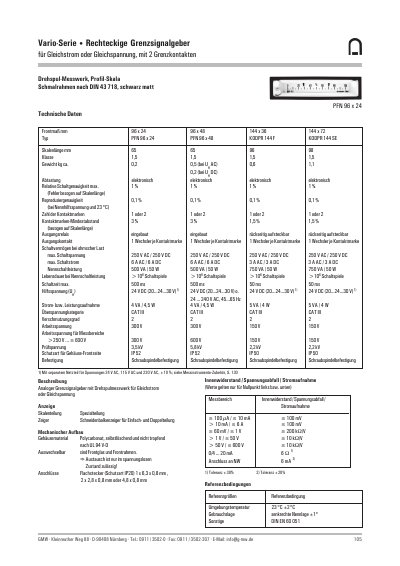

This document provides technical specifications for the GMW Vario-Serie rectangular limit signal generators, specifically the PFN and KODPR models. These instruments are designed for measuring direct current or direct voltage with two adjustable limit contacts to control relays for monitoring or switching applications. The devices feature a moving coil mechanism with a profile scale and are housed in a self-extinguishing, non-dripping polycarbonate case. This manual is written in German.
| Measurement type | DC or DC voltage |
|---|---|
| Contact configuration | 2 limit contacts |
| Maximum switching voltage | 250VAC/250VDC |
| Maximum switching current | 6AAC/6ADC |
| Rated switching power | 500 VA/50W |
| Switching life | > 109 switching operations |
| Switching time | max. 500ms |
| Housing material | Polycarbonate |
| Protection class | IP52 |
The maximum switching voltage is 250VAC/250VDC.
The rated switching power is 500 VA/50W.
The maximum switching time is 500ms.
