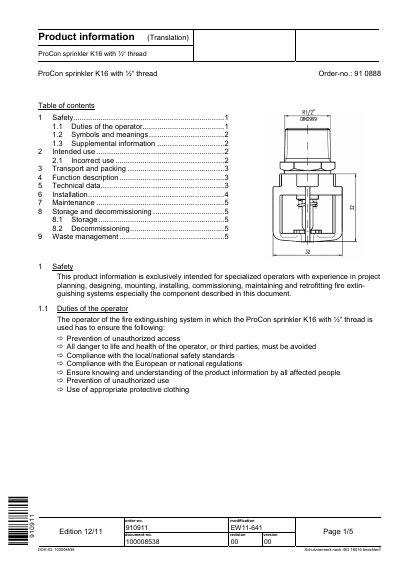

This document is about the product information of ProCon sprinkler K16, including safety precautions, instructions for use, technical data, installation, maintenance, etc.
This document provides product information for the Minimax ProCon sprinkler K16, a component of fire extinguishing systems. It details the intended use, safety warnings, and function description, explaining how the glass bulb mechanism releases water upon detecting heat. The manual specifies that the product is designed for specialized operators with experience in fire extinguishing systems.
| Coverage area | max. 6 m² |
|---|---|
| Distance between sprinklers | 3m |
| Distance to wall | 1,5 m |
| Operating pressure | 3 bar to 12,5 bar |
| Response sensitivity | >80, < 200 |
| Housing material | stainless steel |
| Connecting thread material | brass |
A maximum torque of 20 Nm must not be exceeded.
Repairing is strictly forbidden; damaged units must be changed immediately.
The glass bulb can be damaged, so work must be done with personal protective equipment.
