The document describes a system for filling high temperature liquids, including a high-quality case with a blow-out device and a helical bourdon tube measuring system. The system is suitable for alternating load for static processes with slow acting transient pressure.

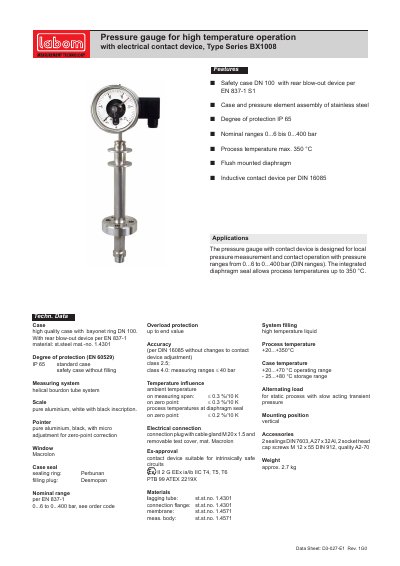

This document provides technical specifications for the Labom BX1008 series pressure gauges equipped with an inductive contact device. The unit features a high-quality stainless steel case (DN 100) with a rear blow-out device per EN 837-1 and a degree of protection IP 65. It utilizes a helical bourdon tube system for measuring static process pressures. This manual is written in German.
| Case material | st.steel mat-no. 1.4301 |
|---|---|
| Degree of protection | IP 65 standard case |
| Measuring system | helical bourdon tube system |
| Nominal range | 0...6 to 0...400 bar |
| Process temperature max. | 350 °C |
| Accuracy class (without contact adjustment) | class 2.5 |
| Weight | approx. 2.7 kg |
The pressure gauge supports a process temperature of up to 350 °C.
Yes, the contact device is suitable for intrinsically safe circuits with Ex-approval Il 2 G EEx ia IIC T4.
The maximum admissible tightening torque for the flange bolts is 60 Nm (slightly oiled).
