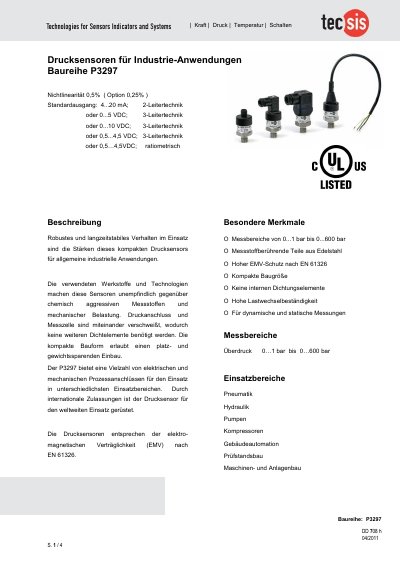

The document introduces a pressure sensor called P3297, which is suitable for industrial applications. The sensor has a nonlinearity of 0.5%, with an option of 0.25%. The standard output is 4-20mA, 2-wire technology or 0.5VDC, 3-wire technology or 0.10VDC, 3-wire technology or 0.5-4.5VDC, 3-wire technology or 0.5-4.5VDC ratiometric output. The sensor is characterized by its robustness and long-term stability, making it suitable for general industrial applications. It has high resistance to chemically aggressive media and mechanical loads. The pressure connection and measuring cell are welded together, eliminating the need for additional sealing elements. The compact design allows for space and weight-saving installation. P3297 offers a variety of electrical and mechanical process connections for use in various application areas. The sensor complies with the electromagnetic compatibility (EMC) requirements of EN 61326. Features include measuring ranges from 0.1 bar to 600 bar, stainless steel material for parts in contact with the medium, high EMC protection, no internal sealing elements, high cycle load capacity, suitable for dynamic and static measurements. Applications include pneumatics, hydraulics, pumps, and compressors.
This document provides technical data for the Tecsis P3297 series of pressure sensors designed for industrial applications. The sensors feature a robust design with stainless steel wetted parts and are suitable for pneumatic and hydraulic systems, as well as building automation and test benches. They offer various output signals including 4...20 mA and 0...10 VDC. This manual is written in German.
| Pressure Range | 0...1 bar to 0...600 bar |
|---|---|
| Material (Wetted Parts) | Stainless Steel 316L |
| EMV Protection | EN 61326 |
| Housing Material | Stainless Steel 316L |
| Weight | ca. 80g |
| Temperature Range (Compensated) | 0...80°C |
The sensor supports measurement ranges from 0 to 600 bar.
The compensated temperature range extends up to 80 degrees Celsius.
The unit weighs approximately 80 grams.
