steute ZS 73 2oe VD technology data

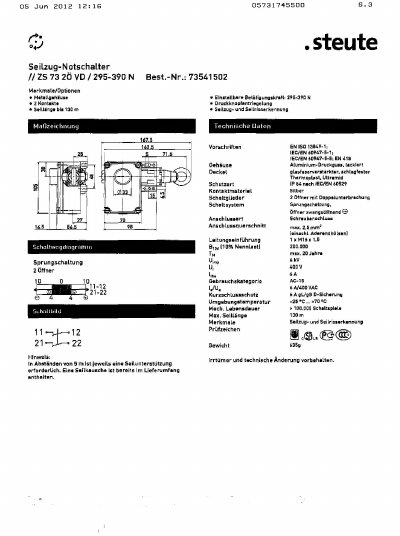

steute ZS 73 2oe VD technology data - cover page
Brand
steute
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
510 KB
Published
10 July, 2012
Updated
23 July, 2012
MD5 checksum
0B5D588A44C88E39598C969CFA11D41E
PDF
steute ZS 73 2oe VD technology data PDF

About this manual

This document provides technical data for the Steute ZS7326VD rope pull switch (Seilzug-Notschalter). The device is designed with a die-cast aluminum housing and thermoplastic cover, offering protection according to IP 54 standards. It features two contacts made of silver alloy and includes a spring-loaded mechanism for forced opening. This manual is written in German.

What's inside

  • Markmale/Optionen
  • Technische Daten
  • Merkmale
  • Hinweis

Specifications

Protection Class (IP Code)IP 54
Max. Cable Diameter2.5 mm
Cable Entry Size1x M18 x 1.5
Electrical Life200,000 operations
Operating Temperature Range-25 ... +70 °C

Frequently asked questions

What is the maximum rated pull force for the ZS7326VD rope pull switch?

The device is rated for a maximum pull force of 295-390N.

What is the maximum operating temperature range for this switch?

The switch operates within a temperature range of -25 to +70 degrees Celsius.

What is the maximum number of mechanical operations for the switch?

The switch is rated for a maximum of 200,000 mechanical operations.
