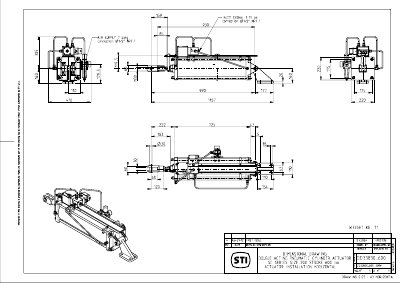

This document provides technical specifications and dimensional drawings for the STI DD33830_600 double-acting pneumatic cylinder actuator. The actuator belongs to the SC Series, has a size of 200, and a stroke length of 600 mm. It is designed for horizontal installation.
| Product Type | Double Acting Pneumatic Cylinder Actuator |
|---|---|
| Series | SC Series |
| Size | 200 |
| Stroke | 600 mm |
| Installation Orientation | Horizontal |
The inlet signal connection requires a pressure between 3 and 15 psi.
This double acting pneumatic cylinder actuator has a stroke of 600 mm.
The unit weighs 71 kg.
