PFXGP4501TAD is Mitsubishi Electric's GP-4501T series industrial touch screen product

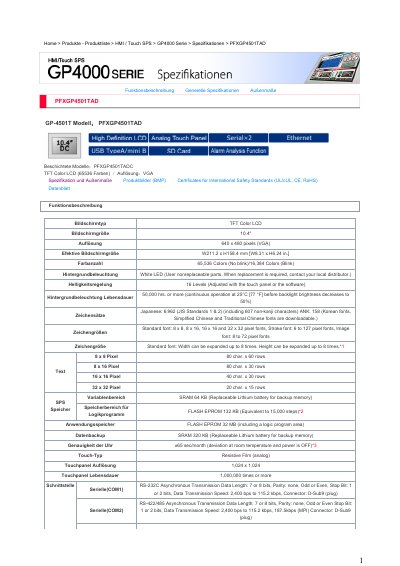

This document provides technical specifications for the Pro-face PFXGP4501TAD, part of the GP4000 series HMI/Touch SPS (Human Machine Interface). The device features a 10.4-inch High Definition LCD with VGA resolution and supports multiple communication interfaces including Ethernet, USB Type-A/mini-B, and serial ports.
Key specifications include a resistive film touch panel with 1,024 x 1,024 resolution, an operating temperature range of 0 to 55 °C, and a power supply requirement of DC 24V. The unit includes significant memory capacity for logic programs and data backup via SRAM and FLASH EPROM. This manual is written in German.
| Screen Type | TFT Color LCD |
|---|---|
| Resolution | 640 x 480 pixels (VGA) |
| Touch Panel Type | Resistive Film (analog) |
| Power Supply Voltage | DC 24V |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 60 °C |
The touch panel has a resolution of 1,024 x 1,024.
The unit operates in temperatures from 0 to 55 °C.
The data transmission speed ranges up to 115.2 kbps.
