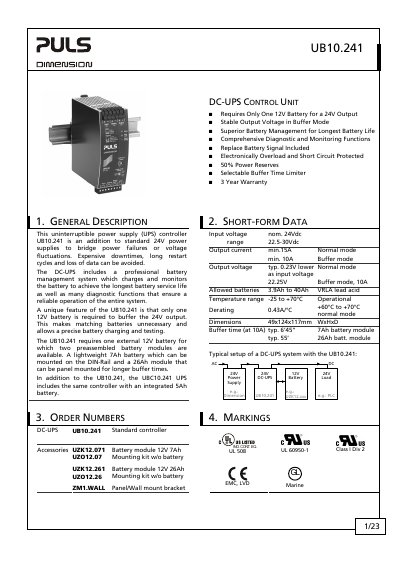

The UB10.241 is a 24V, 10A DC-UPS controller that provides stable output voltage in buffer mode. It has superior battery management for longest battery life, comprehensive diagnostic and monitoring functions, replace battery signal included, electronically overload and short circuit protected, 50% power reserves, selectable buffer time limiter and 3 year warranty.
The PULS UB10.241 is a DC-UPS (Uninterruptible Power Supply) control unit designed to bridge power failures or voltage fluctuations in 24V systems. It features a professional battery management system that requires only one external 12V VRLA lead-acid battery to buffer the 24V output, eliminating the need for matching batteries.
The device operates in two primary modes: Normal mode and Buffer mode. In normal mode, it delivers up to 15A of current with an output voltage tracking the input. In buffer mode, triggered when input voltage drops below a transfer threshold, it stabilizes the output at approximately 24V using the battery, providing up to 10A continuously.
| Nominal Input Voltage | 24Vdc |
|---|---|
| Output Current (Normal Mode) | 15A |
| Output Current (Buffer Mode) | 10A |
| Allowed Batteries | 3.9Ah to 40Ah VRLA lead acid |
| Operating Temperature Range | -25 to +70°C |
| Dimensions (WxHxD) | 49x124x117mm |
| Output Power (Normal Mode) | 360W |
The unit requires only one external 12V battery to buffer the 24V output.
The DC-UPS starts buffering without any interruption or voltage dips.
The maximum allowed input voltage ripple is 1.5Vpp for bandwidths below 400Hz.
