This document provides specifications and accessories of the pHep®+ HI 96108 Pocket-Sized pH Meter with ATC, including measurement range, resolution, accuracy, calibration, temperature compensation, battery life, dimensions, and weight.

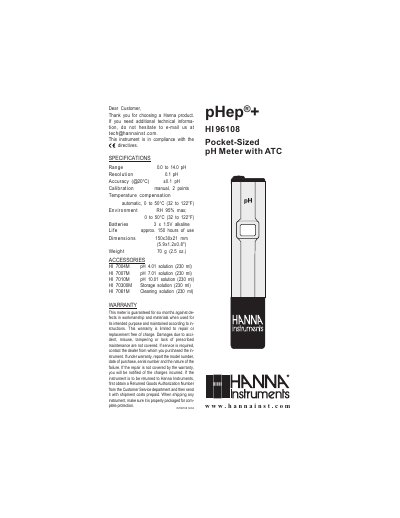

This document is the instruction manual for the Hanna Instruments HI 96108, a pocket-sized pH meter featuring automatic temperature compensation (ATC). The device measures pH in the range of 0.0 to 14.0 with a resolution of 0.1 pH and an accuracy of +0.1 pH at 20°C. It is powered by three 1.5V alkaline batteries and includes specifications for dimensions, weight, and environmental conditions.
| Range | 0.0 to 14.0 pH |
|---|---|
| Resolution | 0.1 pH |
| Accuracy | +0.1 pH (@20°C) |
| Calibration | manual, 2 points |
| Temperature compensation | automatic, 0 to 50°C (32 to 122°F) |
| Environment | RH 95% max; 0 to 50°C (32 to 122°F) |
| Batteries | 3 x 1.5V alkaline |
| Dimensions | 150x30x21 mm (5.9x1.2x0.8") |
The meter is guaranteed for six months against defects in workmanship and materials.
No, the manual explicitly states not to use distilled or deionized water for storage purposes.
Large fluctuations could be due to lack of calibration, a dry electrode, or run-down batteries.
